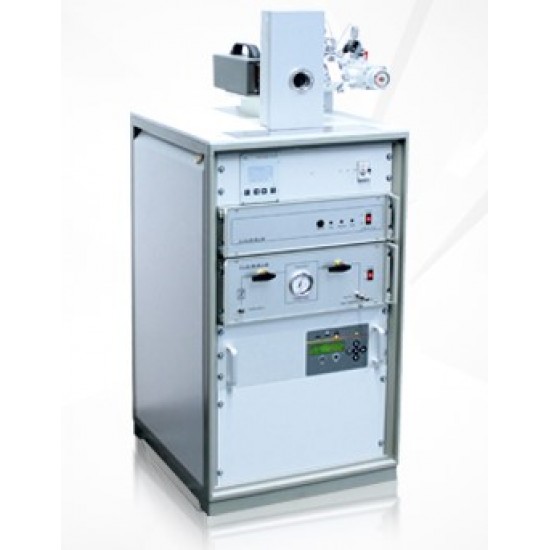

The Quenching Dilatometer L78 RITA is especially suitable for the determination of TTT, CHT and CCT diagrams. The special induction furnace enables heating and cooling speeds in excess of 2000°C/s. The system complies with ASTM A1033.
All critical parameters such as heat up and cool down speed, gas control and safety features are software controlled. The professional 32-bit software Linseis TA-WIN operates exclusively under the Microsoft© operation system. All routine (creation of CHT/CCT/TTT diagrams) and demanding applications are solved by the unique Software package which comes with the instrument. Certainly export functions in ASCII-format as well as graphic output is possible.
Furnace : Induction Furnace
Temperature range -150 to 1600°C
RT - 1000°C
RT - 1600°C
Sample holder: Fused silica, Al2O3
Diameter: 6...7mm (solid/hollow sample)
Length: 10mm
Atmosphere: inert, oxid., red., vac.
Heating rate: up to 2000 K/s
Cooling rate: up to 2000 K/s
Acquisition rate: max. 1000 readings/s
Power requirements: 230VAC, 16A, 50..60Hz
Option: Cryogenic cooling
