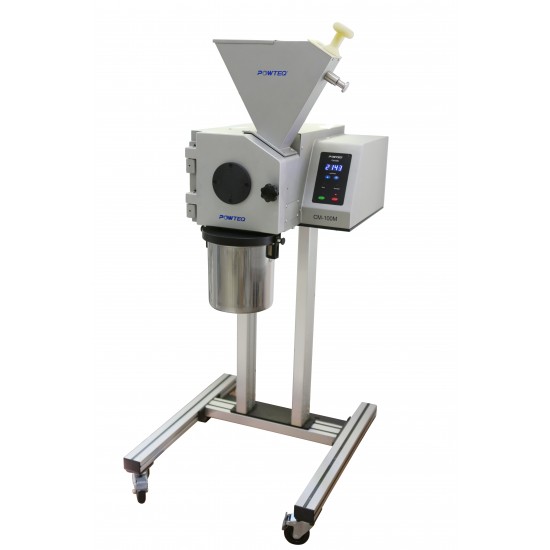

Multi-functional cutting mill CM100M

Multi-functional CM100M, which is a unique product from Grinder. It is suitable for various soft, tough, fibrous and hard dry samples. It can be used for batch processing and continuous coarse crushing and fine crushing.

Applications

• M1 cutting type can handle fibrous, tough materials, such as tobacco, leather, circuit boards and so on;
• M2 cross beater type can deal with the mid-hard, brittle materials (hardness no more than 6Mohs), such as slag, coke, soil and so on;
• M3 rotor beater type can handle soft, food samples, such as cereals, feed and chemicals.

Working Principle

• M1-cutting type: The sample passes through the hopper into the grinding chamber and is cut by the shearing action between a rotor and a fixed cutting bar. When the sample size is smaller than the aperture on the sieve plate, the sample falls into the collecting bucket.
• M2 -cross beater type: M2  type  grinds the samples through beating，impacting. The sample enters the center of the chamber through the hopper. The sample is crushed between the impact plate and the gear of the embedded parts. Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container. The beater rotor draws a large amount of air through the hopper channel, thus accelerate the speed of the crushed sample departing from the crushing chamber.
• M3- rotor beater type: The sample enters the center of the chamber directly through the hopper. The sample is crushed between the rotor, embedded parts and sieve. Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container. The quick locking design of the mill door ensures the convenient and fast access to the crushing cavity, and also ensures the convenience of cleaning.

Features and advantages

• Equipped with crushing dust collection device to prevent cross contamination;
• It can be fixed on the floor and equipped with casters to move easily;
• With quick locking device and motor braking, it has high safety performance;
• The grinding process is rapid and produces less heat;
• Through three different grinding accessories to achieve different functions, which is suitable for wider range of samples;
• The final fineness is up to 100 microns. The size of the sample is controlled by the bottom sieve and sieve with different sizes can be selected;
• A large amount of sample can be processed continuously, ranging from a few kilograms to several hundred kilograms per hour;
• All the three types can be equipped with small sample receiver and cyclone separator, which is convenient for sample collection, chamber cleaning and heat generation reduction.

Technical Data
