Micro Vickers hardnes tester LHVS-1000Z with Touch Screen

Description

• With 7-inch large LCD screen, menu structure.
• Automatic measuring process, easy operation.
• High-definition optical system, the brightness of light source can be adjusted in 20 levels.
• With hardness value conversion function, tolerance judgment

Main Features

• Touch Screen, full color multi-function OLED dispay
• Automatic measuring process
• Automatic turret function
•  Corner length D1 and D2 automatically calculate and input
• High-definition optical system: 20 levels adjustable
• Hardness scale conversion function
• Built-in printer for data output
• Optional: Knoop indenter, high-definition CCD camera & system
• Automatic turret function


Application

• Surface coating,steel,non-ferrous metals, ceramics, alloys, etc.
• Heat treatment, carbonizat ion.quenched hardened layer, nitrided layer.
• Small and thin parts

Technical Specifications

• Model: LHVS-1000Z (Touch Screen)
• Test force: 10 gf (0.098N),  25 gf (0.245N), 50 gf (0.49N), 100 gf (0.98N), 200 gf (1.96N), 300 gf (2.94N), 500 gf (4.9N), 1000 gf (9.8N)
• Min measuring unit: 0.03125 µm
• Data output: LCD screen display
• Carried Standard: GB/f4340.1, GBfT4340.2, IS06507-2, ASTM_E384, JJG151
• Max Height of Specimen: 90 mm
• Distance of Indenter to wall: 120 mm

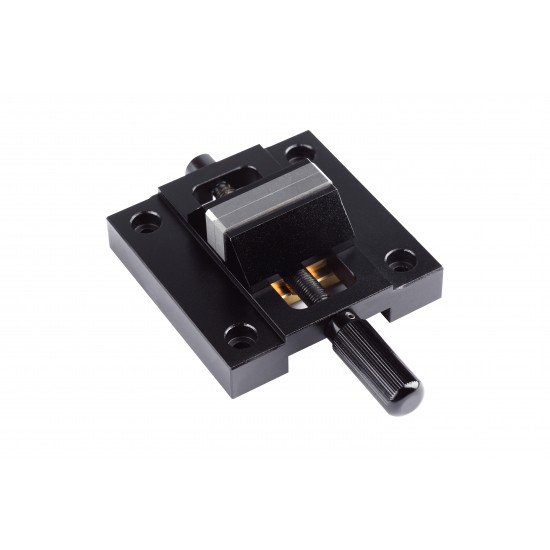

• X-Y Testing table: Dimension: 100*100mm, Max mobile:  25*25mm
• Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK,  HBW, HR15N, HR30N, HR45N, HR15T,  HR30T, HR45T
• Measuring Range: 8-2900 HV
• Method of testing force applied: Automatic (Loading, Dwell, Unloading)

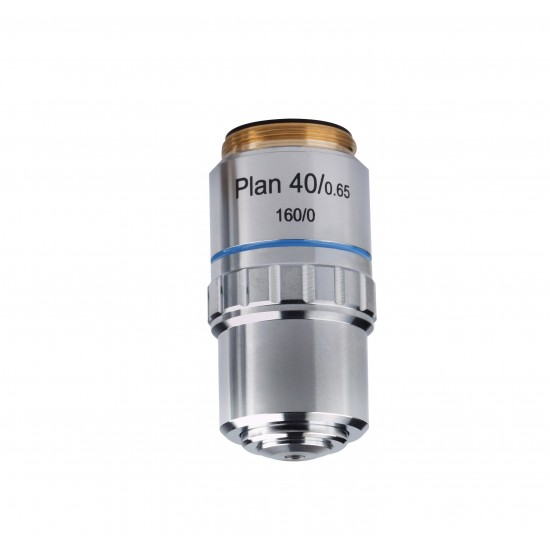

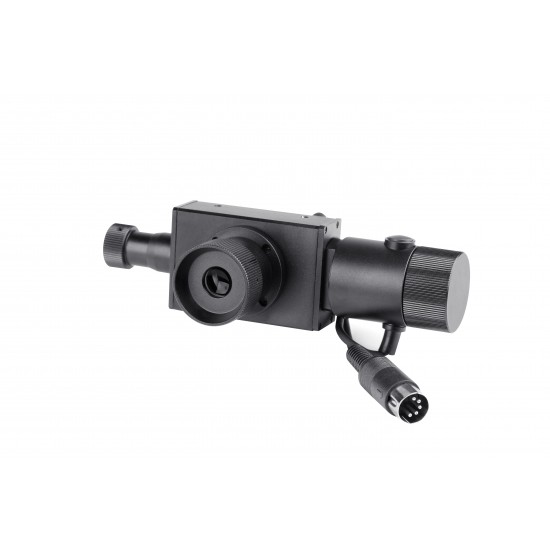

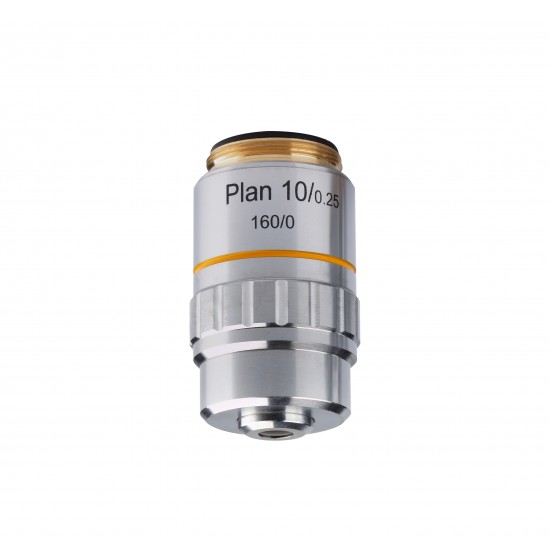

• Test microscope magnification: 400X (Measuring), 100X (observation)
• Duration time: 0-60 s (Adjustable)
• Power supply: AC220V+5%,  50-60 Hz
• Overall Dimension: 405*290*480 mm
• Net weight: About 40 kg
