Portable hardness tester UEE 915

Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915
Portable hardness tester UEE 915

Functions & Features

  • High stability and precision
  • With built-in thermal printer
  • Rechargeable Li-ion battery and auto power-off function
  • Direct calibrate on HL,HRC,HB, and freely switch to 8 different hardness scales
  • Automatically identify 7 types of Impact devices for special application
  • Test at any angle and direction, even upside down
  • Conversion to tensile strength (U.T.S)
  • PC Software for data transmission, analysis and measurement reports printing
  • 3 years warranty and life-long services
  • Printer: build-in high-speed thermal printer, width for printer paper: 44.5±0.5 mm

Measuring Materials

  • 10 types of metals: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys, copper and tin alloy, copper, forged steel.

Technical Parameters

ModelUEE 915
Measuring range(170-960) HLD, (17.9-69.5) HRC, (19-683) HB, (80-1042) HV, (30.6-102.6) HS, (13.5-101.7) HRB
Hardness parameterHL, HRC, HRB, HRA, HRV, HS, HB, HV, HSD
Accuracy

± 6 HLD

Memory600 groups
PC Connectionavailable
BatteryRechargeable Li-ion battery
Operating temperature-20 ᵒС ~ +60 ᵒС
Dimensions230 х 86 х 46 mm
Weight450 g

Portable Hardness Tester

Application Fields

    • The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
    • Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
    • Large work-piece within a wide range of more rapid test measurement site

    Measuring Conditions

    • The weight of measuring object must be more than 2kg.
    • The thickness must be more than 10mm.
    • The surface roughness must be no less than 1.6μm.

    Tips: If do not meet the above conditions, the measuring object should be laminated with steel substrate by coupling agents.

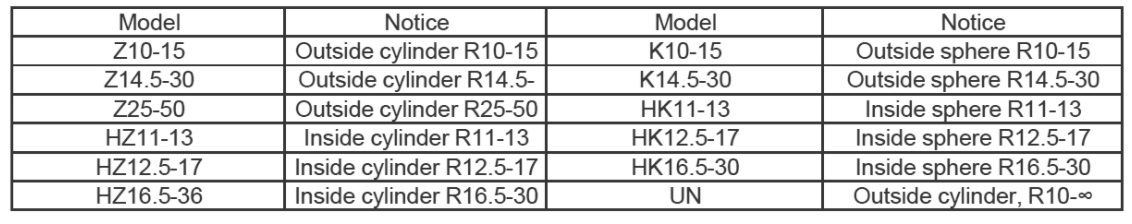

    Special Supporting Ring ( use for different shaped surface)

    Measuring Range Table


    More information on the manufacturer's website:

    https://www.leebtest.com/portable-hardness-tester-uee915-p00060p1.html

    0грн.
    • Stock: In Stock
    • Model: UEE 915
