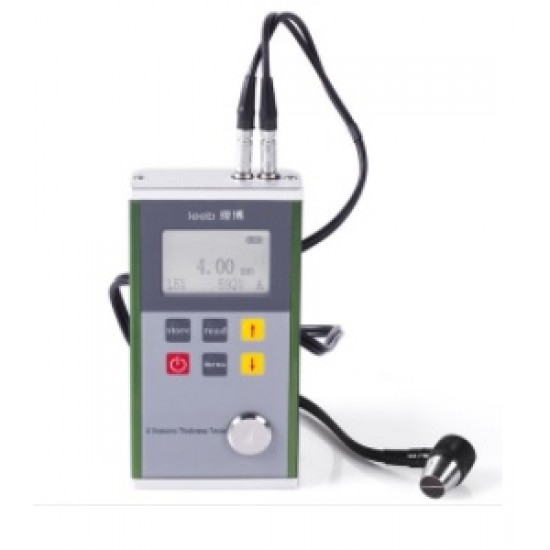

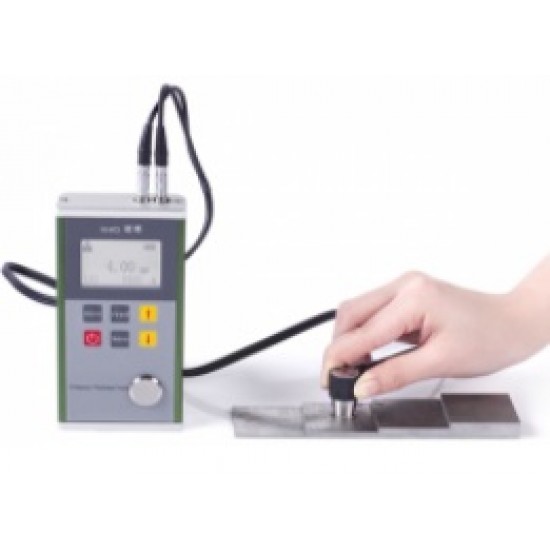

Ultrasonic thickness gauge Leeb 330/331/332

Functions & Features

• Whole metal case, Shielding interference efficiently.

• Zero calibration: auto returning to zero when you press the key after the probe is put on the specimen.
• Data transmission: RS232 interface, can be connected to the PC.
• Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve battery life.
• Display: LCD with LED backlight. The brightness and the contrast of the LCD is adjustable. And thickness value, coupling condition.
• The unit of measurement, metric, inch optional.
• Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
• A two-point calibration, can improve the accuracy of measurement.

• Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
• Alarm function: setting the measurement limit and alarming for the results beyond the limit.

Application Fields

• Widely used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace and other fields.

Measuring Materials

• Adapted to measure the thickness of ultrasonic conductor, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass etc.


Technical Parameters

More information on the manufacturer's website:

https://www.leebtest.com/ultrasonic-thickness-gauge-leeb330-331-332-p00036p1.html
