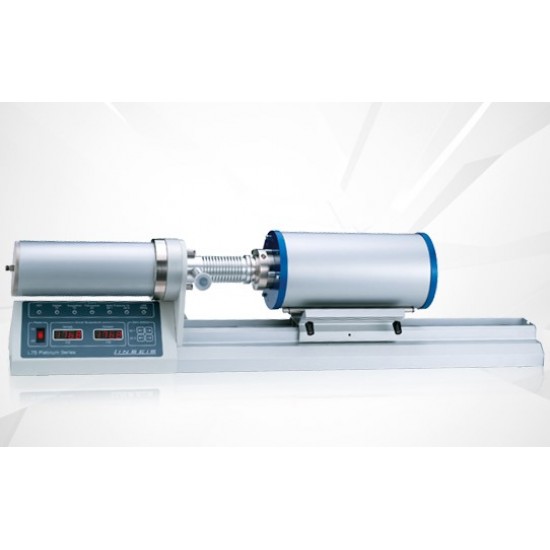

L75 PT Horizontal Dual- and differential-Dilatometer (DIL Dilatometer)

The horizontal Dual- and differential-Dilatometer series L75H was developed to meet the demands of the academic community and research laboratories worldwide. With this system thermal expansion behavior of solids, liquids, powders and pastes for a variety of applications can be precisely determined. The unique design of this system guarantees highest precision, reproducibility and accuracy. This line of Dilatometers is capable of performing measurements under vacuum, oxidizing and reducing atmospheres.

This system can be ordered in a single or differential version for even higher precision or sample throughput.

Optionally the mechanical and electronic components of the dilatometer can be separated to allow measurements in a glove box

The following physical properties can be measured:

CTE, Linear Thermal Expansion, Alpha Physical, Sintering Temperature, Phase Transformations, Softening Points, Decomposition Temperatures, Glass Transition Temperatures

Specifications

Configuration: Single or differential dilatometer

Temperature range: -150 – 500°C

  RT ... 1000/1400/1600/2000°C

Heating/cooling rates: 0.01 K/min ... 100 K/min (dependent on furnace)

Sample holders: fused silica <1100°C

  Al2O3 <1750°C

  Graphite 2000°C

Sample length: max. 50 mm

Sample diameter: 7/12/20 mm

Adjustable Sample pressure: up to 1000mN

Measuring range: 500/5000 µm

Resolution: 0.125 nm

Atmospheres: reducing, inert, oxidizing, static/dynamic

Calculated DTA: optional

Electronics: Integrated

Interface: USB
