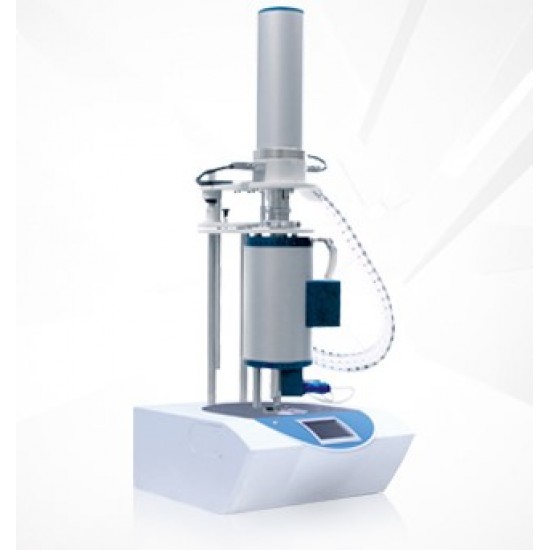

TMA PT1600 (TMA Thermo Mechanical Analysis)

The design of the TMA PT1600 Thermomechanical Analyzer guarantees highest precision, reproducibility and accuracy. The system was constructed to performing a variety of Thermomechanical experiments, on an array of sample shapes and sizes, over a wide temperature range, to meet all TMA needs.

The system can perform either static or dynamic measurements due to a built in force/frequency generator.

Typical materials under investigation are: composite materials, glass, polymers, ceramics and metals. The variety of measuring systems allows sample geometries such as fibers, rods, films, rods or cylinders.

Specifications

Model: TMA PT1600

Temperature range: -150 – 700°C

  RT up to 1400/1600°C

Sample size: 30mm

Force: up to 1or 5.7 N

Frequency: 1 or 5 Hz

Resolution: 0.125 nm

Atmospheres: reducing, inert, oxidizing, static/dynamic

Electronics: Integrated

Interface: USB
